Module 433Mhz E32-TTL-100 v6.0

190.000₫
  • :

    Còn hàng

Mã sản phẩm : DAT3094

Module 433Mhz E32-TTL-100 v6.0


Thêm vào yêu thích Đã yêu thích

Module 433Mhz E32-TTL-100 v6.0

  • size 1. Module: 21 * 36 meters
    2. Antenna type: SMA standard external antenna connector (NOT included).
    3. Power supply: 2.3 V-5.5 V DC
    4. Communication level: V 5.2 (max)
    5. Transmission distance: 3000 m (max)
    Maximum Power: 2dB (100 mW)
    7. Air Price: 2.4 Kbps
    8. Current Emission: 130mA @ 100 mW
    9. Receive current: 13.5mA @ Mode 0, mode 1
    10. Sleep Current: 2.0uA (M1 = 1, M1 = 0)
    11. Length of emission: 256 Bytes
    12. Received length: 256 bytes
    13. Communication Interface: UART
    14. RSSI support: Yes
    15. working frequency: 410 MHz-441 MHz (default 433 MHz)
    16. operating temperature: -30 ~ + 85 degrees C
    17. Receiver sensitivity: -130dBm @ 1.2 Kbps
    Lỗi Liquid: Value cannot be null. Parameter name: inputLỗi Liquid: Error - Không tìm thấy template. Các đường dẫn đã được tìm:
    layouts/shortcode-Features.bwt
    snippets/shortcode-Features.bwt: The E32-TTL-100 is a modular wireless transceiver based on SX1278 from SEMTECH (can be both transmitter and receiver). It will use the LoRa spread spectrum technology, with this technology the transmission distance and penetration capabilities of the modules improve more than 1 times the traditional FSK. The FEC module (forward error correction) algorithm, which ensures it's good anti-interference capability. E32-TTL-100 can be compatible with other E32 modules.

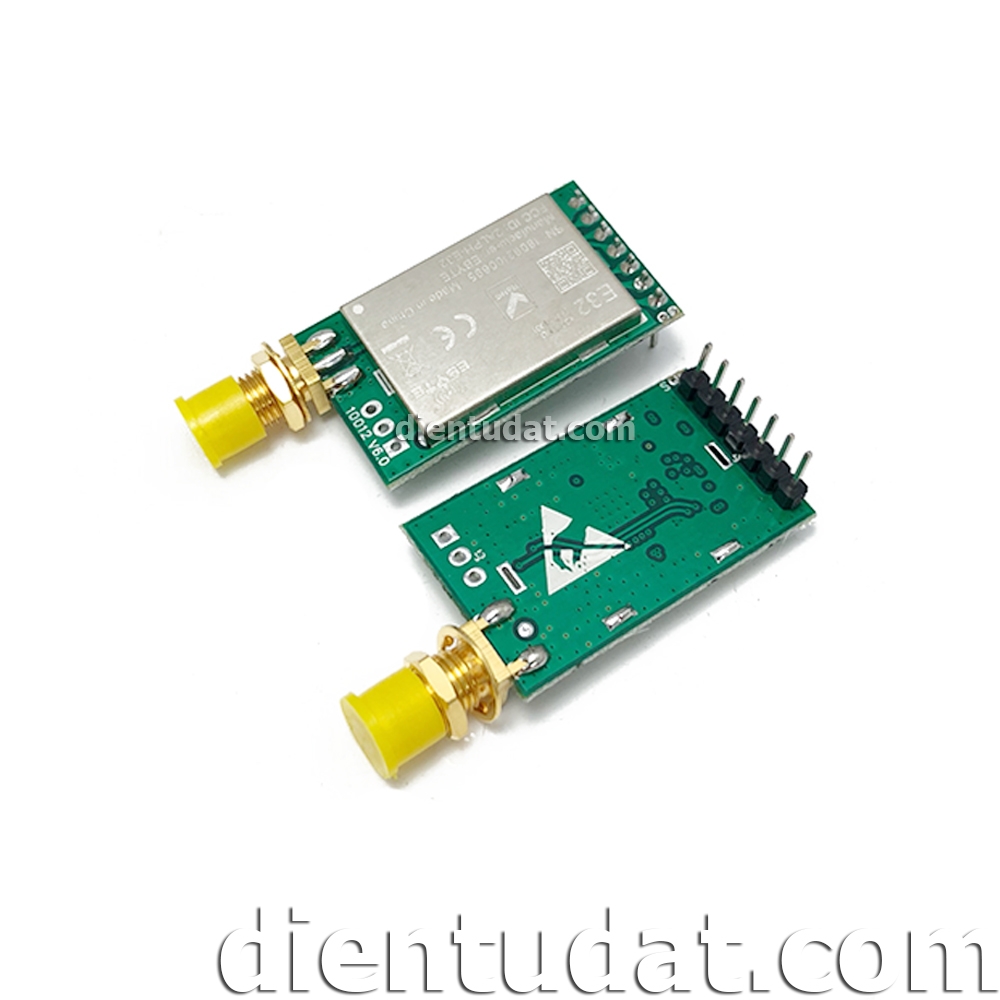

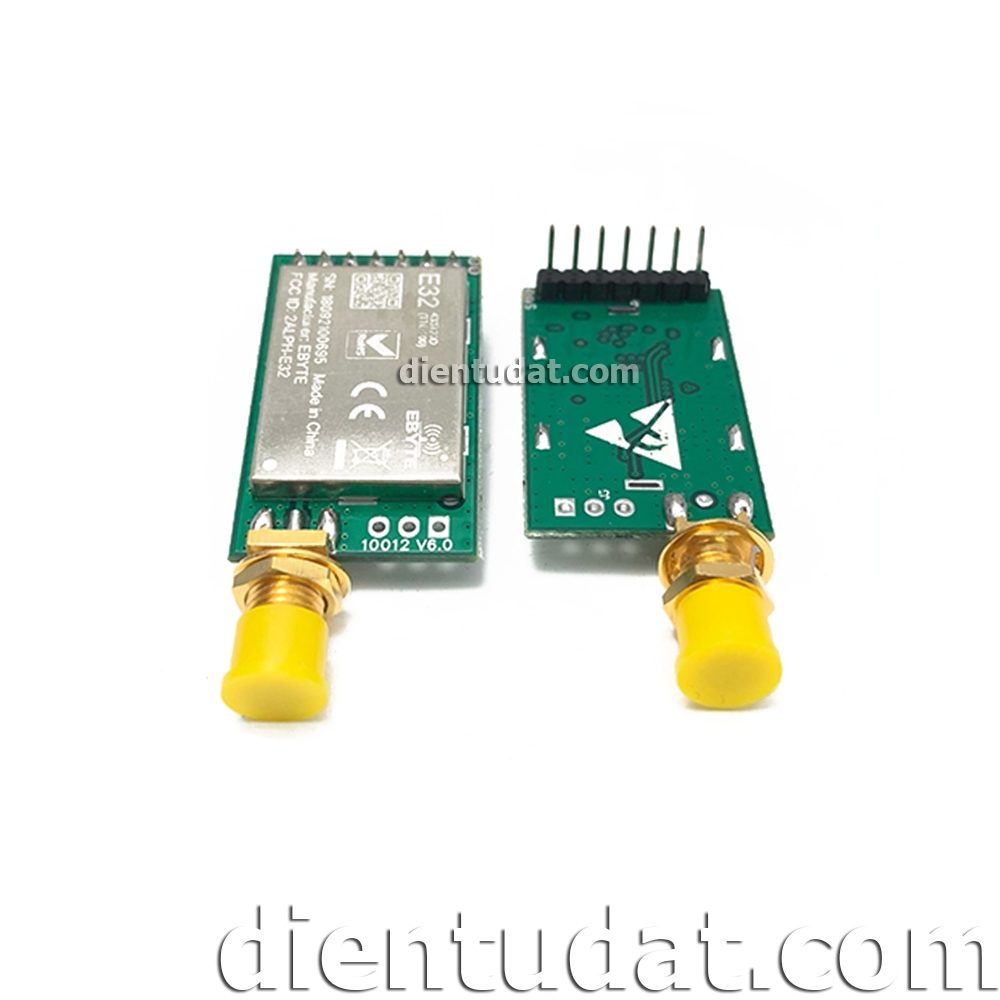

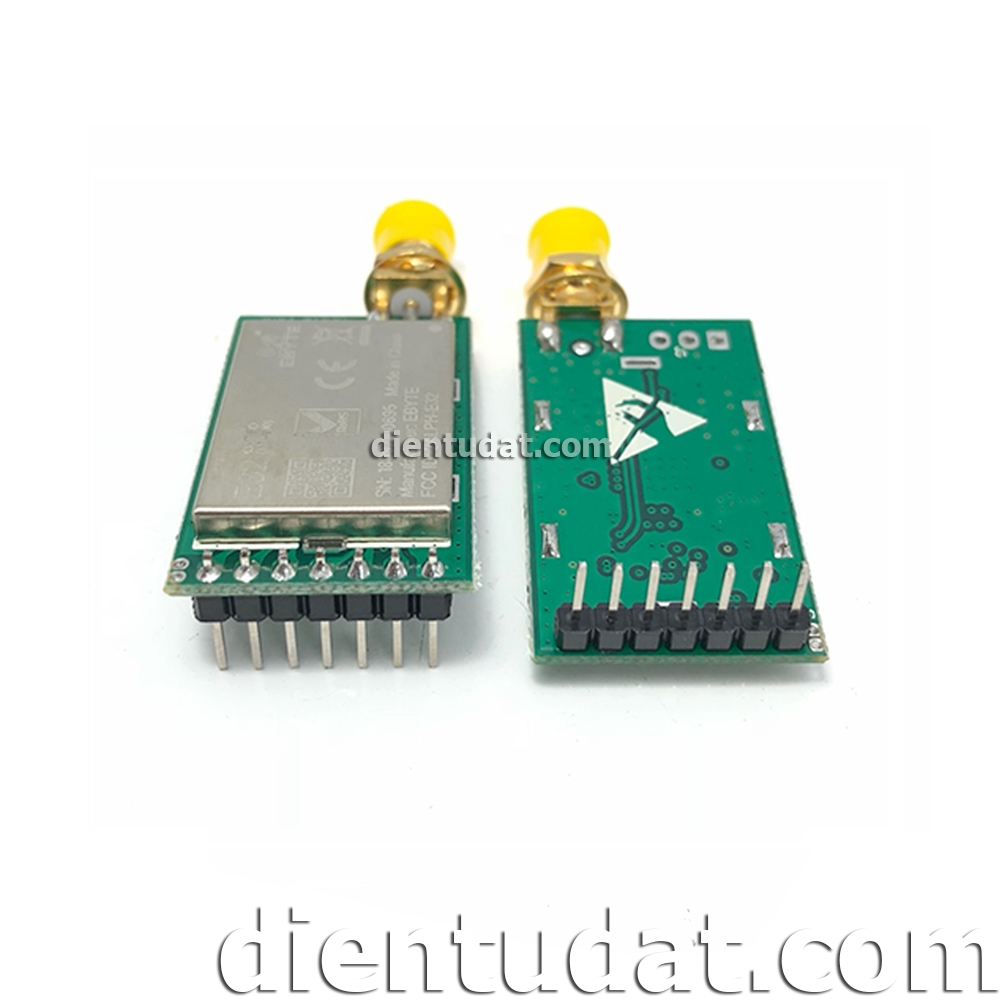

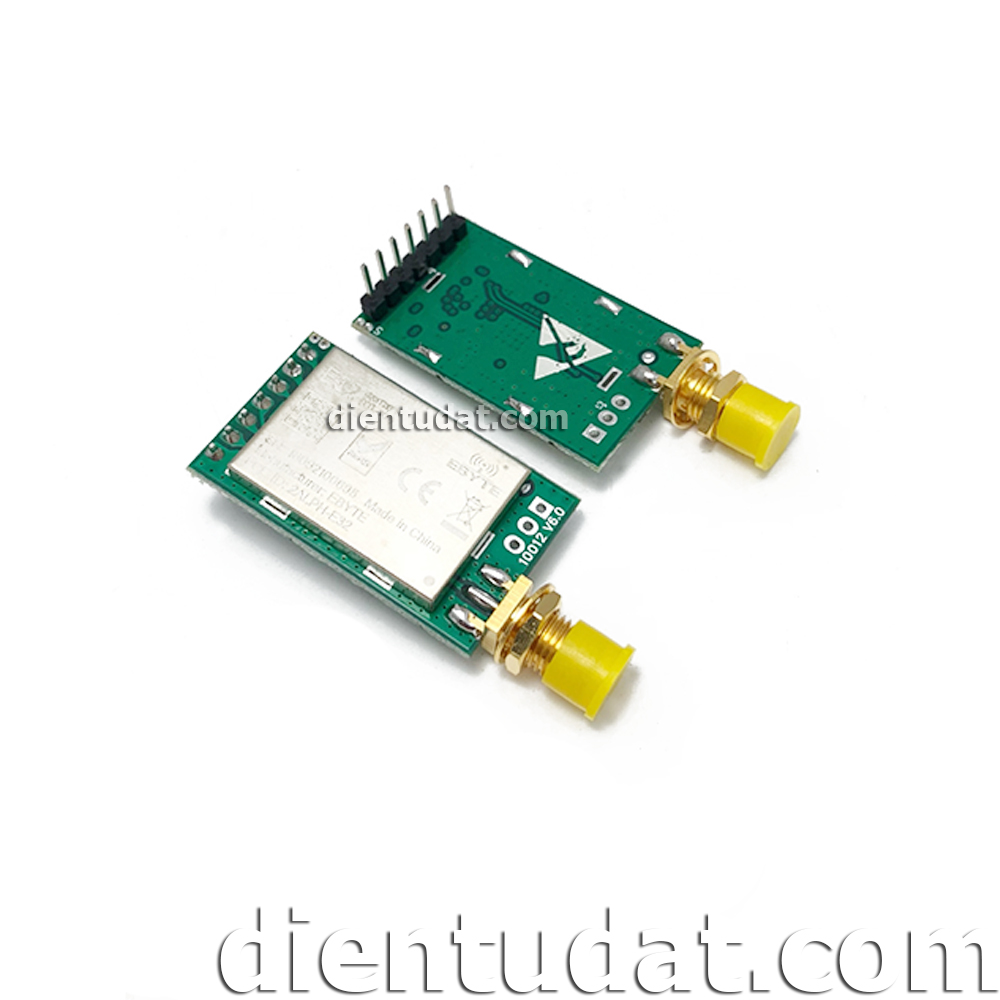

Hình ảnh sản phẩm:
